Fence Pipe (Made
in USA)
The Fence Pipe produced at our plant includes Residential,
JT-15, JT-20, JT-40 and Sch-40 Hot Dip Galvanized conforming
to ASTM A-53 (F-1083) Standards.
The Sizes and packing information is given
as under:
Residential Tubing:
| Fence
Size |
Actual OD |
Wall thickness
|
Packing per
Bundle
|
wt./foot
|
| 1-3/8" |
1.315" |
0.055" |
91 |
0.074 |
| 1-5/8" |
1.660" |
0.055" |
61 |
0.943 |
| |
|
|
|
|
| 1-3/8" |
1.315" |
0.065" |
91 |
0.868 |
| 1-5/8" |
1.660" |
0.065" |
61 |
1.107 |
| 1-7/8" |
1.900" |
0.065" |
61 |
1.274 |
| 2-3/8" |
2.375" |
0.065" |
37 |
1.604 |
JT-15
| Fence
Size |
Actual OD |
Wall
thickness |
Packing per Bundle |
wt./foot |
| 1-3/8" |
1.315" |
0.072" |
91 |
0.956 |
| 1-5/8" |
1.660" |
0.072" |
61 |
1.221 |
| 1-7/8" |
1.900" |
0.072" |
61 |
1.406 |
| 2-3/8" |
2.375" |
0.076" |
37 |
1.866 |
JT- 20
| Fence
Size |
Actual OD |
Wall
thickness |
Packing per Bundle |
wt./foot |
| 1-3/8" |
1.315" |
0.080" |
91 |
1.055 |
| 1-5/8" |
1.660" |
0.085" |
61 |
1.430 |
| 1-7/8" |
1.900" |
0.090" |
61 |
1.740 |
| 2-3/8" |
2.375" |
0.095" |
37 |
2.313 |
| 2-7/8" |
2.875" |
0.110" |
19 |
3.248 |
JT- 40
| Fence
Size |
Actual OD |
Wall
thickness |
Packing per Bundle |
wt./foot |
| 1-3/8" |
1.315" |
0.104" |
91 |
1.35 |
| 1-5/8" |
1.660" |
0.111" |
61 |
1.84 |
| 1-7/8" |
1.900" |
0.120" |
61 |
2.28 |
| 2-3/8" |
2.375" |
0.130" |
37 |
3.11 |
| 2-7/8" |
2.875" |
0.160" |
19 |
4.64 |
| 4" |
4.000" |
0.160" |
12 |
6.56 |
SCH-40 HOT
DIP
GALVANIZED
(After Fabrication)
Conforming to ASTM F-1083
specifications. (Made
in USA)
|
Fence Size |
Actual OD |
Wall thickness |
Packing per Bundle |
wt./foot |
| 1-3/8" |
1.315" |
0.133" |
61
|
1.055 |
| 1-5/8" |
1.660" |
0.140" |
42
|
2.27 |
| 1-7/8" |
1.900" |
0.145" |
36 |
2.72 |
| 2-3/8" |
2.375" |
0.154" |
26 |
3.65 |
| 2-7/8" |
2.875" |
0.203" |
18 |
5.79 |
| * 4" |
4.000" |
0.226" |
12 |
9.11 |
| * 6-5/8" |
6.625" |
0.280" |
7 |
18.97 |
| * 8-5/8" |
8.625" |
0.322" |
3 |
28.55 |
|

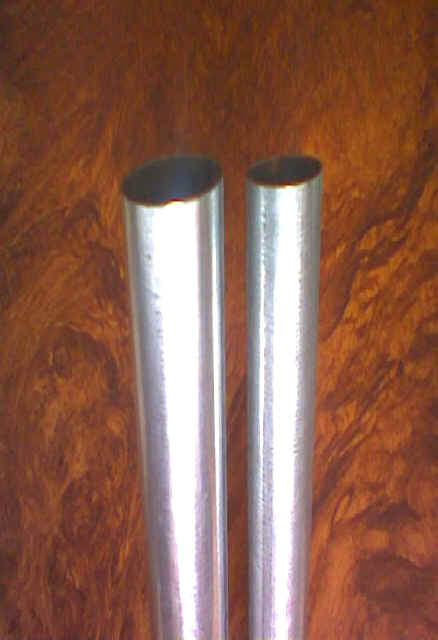

PRE-GALVANIZED FENCE PIPE
SPECIFICATIONS
ASTM F-1043
RR F-191 Chain Link Fence Specification
ASTM A513
ASTM A787 (G-90)
ASTM A500 Grade B
50,000 PSI Minimum, 65,000 PSI Ultimate Tensile
F-162 Federal Aviation
M-181 AASHTO
CEGS 02821 Dept. of the Army
NFGS 02831 Dept. of the Navy
AIA - Section 02821
FBP 02920 & 02821 Department of Justice

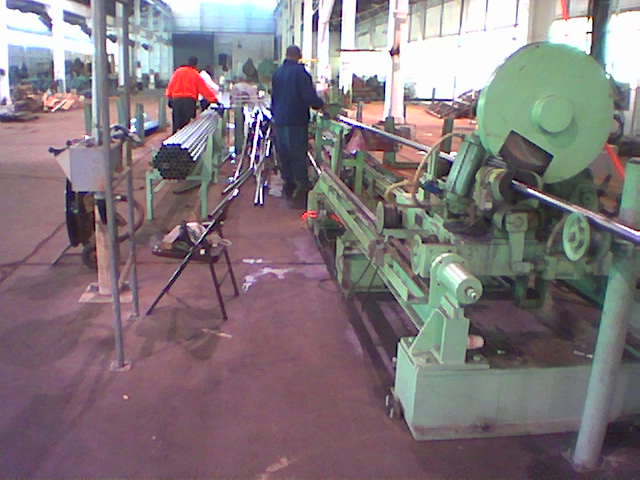

Fence Tube Manufacturing Line
